First Shape File

This page builds a minimal Shape model: one resource, one component, and function effect summaries. The goal is a module the checker can accept, not a full system model.

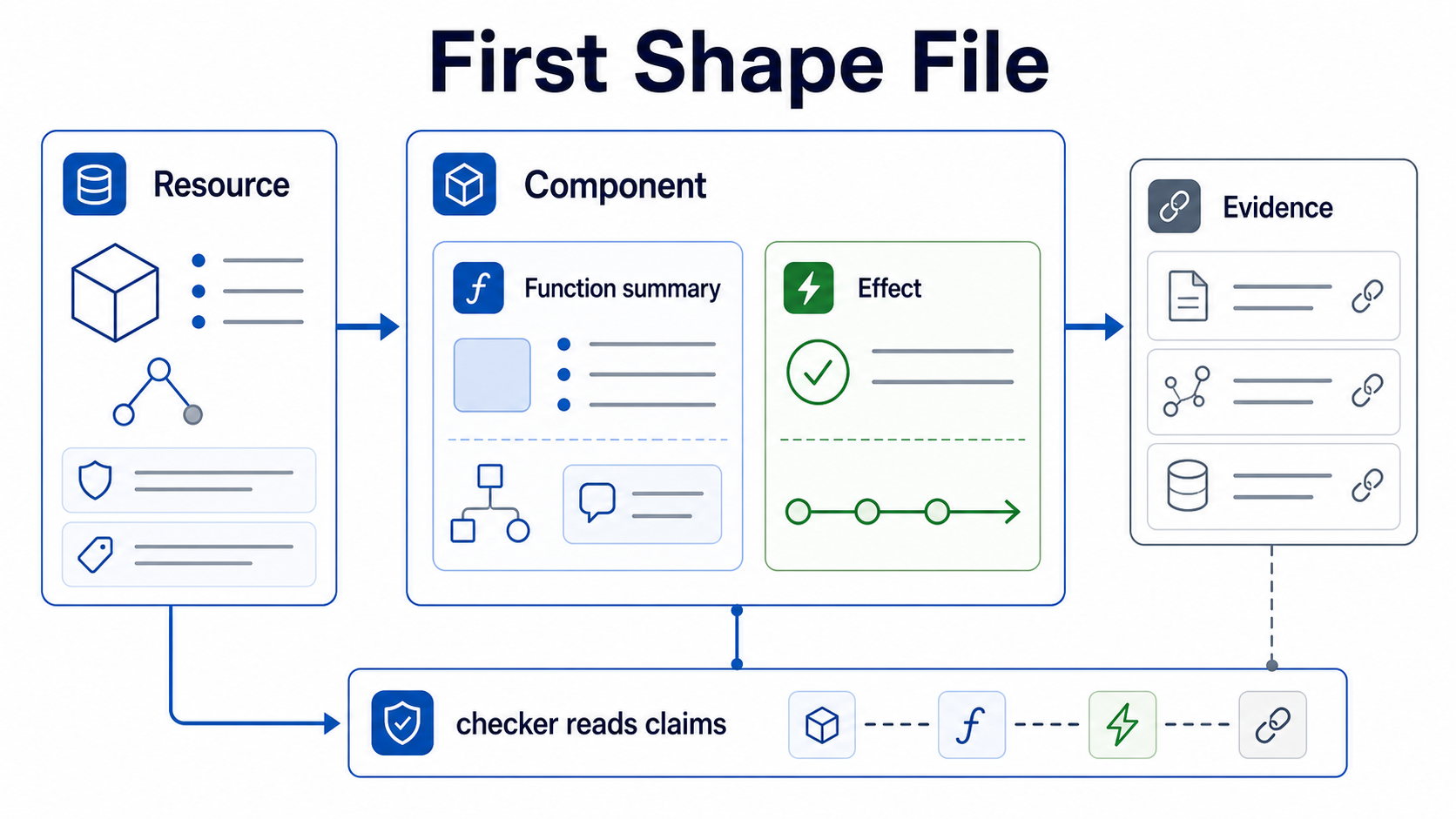

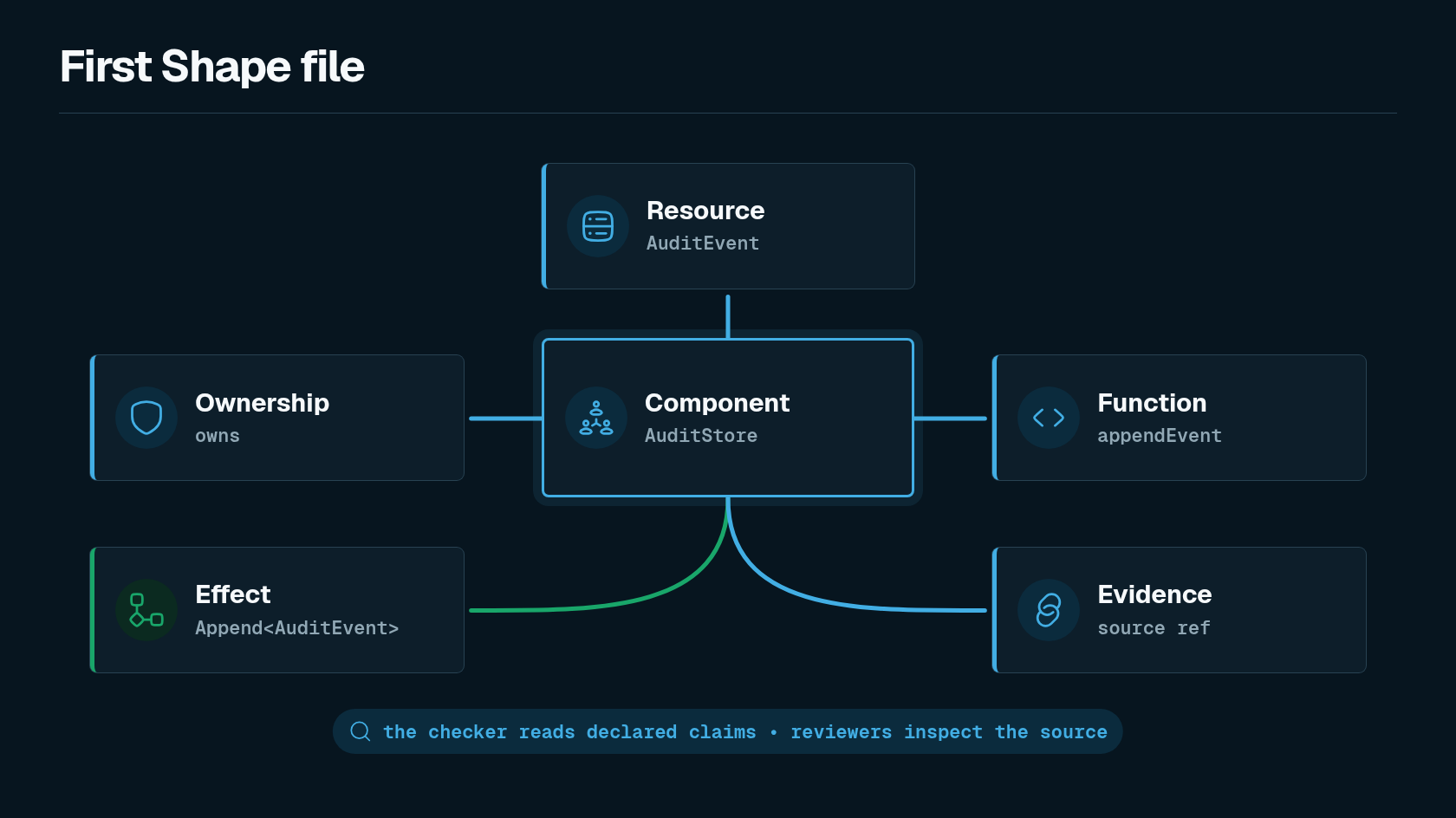

First Shape file map showing a resource, component, function summary, effect, evidence, and checker claim reading.

Minimal model

Section titled “Minimal model”

AppendOnly is a built-in prelude trait. It finally forbids HardDelete, Truncate, and DropStorage on the resource that carries it. You can redeclare an equivalent trait in project files; fixtures that need a local definition do so explicitly.

module audit


resource AuditEvent : AppendOnly


component AuditStore {
  owns AuditEvent
  grants Append<AuditEvent>
  fn appendEvent
    effects complete {
      Append<AuditEvent>
    }
}

Save the module under your project’s default discovery tree, for example shape/audit.shape. With no file arguments, shp check scans shape/**/*.shape. You can also pass the file path explicitly:

Terminal window
shp check shape/audit.shape

Expected result:

Shape check passed.

In the Shape language repository, the same pattern is covered by the pass fixture fixtures/pass/append_only_append/audit.shape. Application repos should check their own shape/ files, not that fixture path.

Resource

Section titled “Resource”

resource AuditEvent : AppendOnly says AuditEvent is an architectural target governed by the AppendOnly trait.

The checker does not require the resource to exist as a runtime type. It uses the resource as the target of effects, ownership, and trait-derived constraints. See Resources, Traits, and Effects.

Component

Section titled “Component”

component AuditStore groups ownership, grants, and function summaries.

  • owns AuditEvent is a review claim about ownership in the architecture model, not a runtime allocator.
  • grants Append<AuditEvent> says functions in this component may emit that effect. Emitting an effect without a matching grant fails the check.
  • Grants do not override forbid final constraints from traits or rules.

Structural links between components and resources are not declared inside a component. They live in top-level relation declarations. See Relations and Hypergraphs and Components, Ownership, and Grants.

Function summary

Section titled “Function summary”

fn appendEvent is not an implementation. It is a summary of the source function’s architectural effects for the model.

  • effects complete { ... } claims the listed effects are exhaustive for that function.
  • Use effects unknown when the effects are not yet known. Strict shp check rejects unknowns so unresolved analysis cannot ship as a complete contract; draft with shp check --allow-unknown-effects while authoring.
  • Prefer an honest effects unknown over an empty complete summary that pretends completeness.

See Unknowns and Safety.

Evidence

Section titled “Evidence”

Source and evidence refs make claims reviewable by humans. The checker does not execute the referenced TypeScript; the refs tell reviewers where to inspect the claim.

module audit


resource AuditEvent : AppendOnly


component AuditStore {
  owns AuditEvent
  grants Append<AuditEvent>
  fn appendEvent
    source ts("src/audit/store.ts#appendEvent")
    effects complete {
      Append<AuditEvent>
        evidence ts("src/audit/store.ts#appendEvent")
    }
}

See Evidence and Source Refs.

What fails next

Section titled “What fails next”

If you add a function that emits HardDelete<AuditEvent>, the model fails even with a matching grant, because prelude AppendOnly derives a final forbid. Walk through that failure in Append-Only Walkthrough.

Best practices

Section titled “Best practices”

Do

  • Start with one resource, one owner component, and the functions that touch that resource
  • Grant only the effects the component actually needs
  • Attach source / evidence when a claim will be reviewed or when coverage needs a current Shape reference
  • Keep structural dependencies as top-level relation declarations

Do not

  • Nest calls / provides links inside the component body
  • Use empty effects complete blocks to silence uncertainty
  • Assume grants can authorize final-forbidden effects
  • Treat a passing check as proof that the implementation is correct—only that the declared model is coherent
