Append-Only Walkthrough

This walkthrough is the core Shape failure path: declare an append-only resource, model safe functions, then add a hard-delete function and read the diagnostic. Use it when you need a concrete pass/fail pair for resource traits and final forbids.

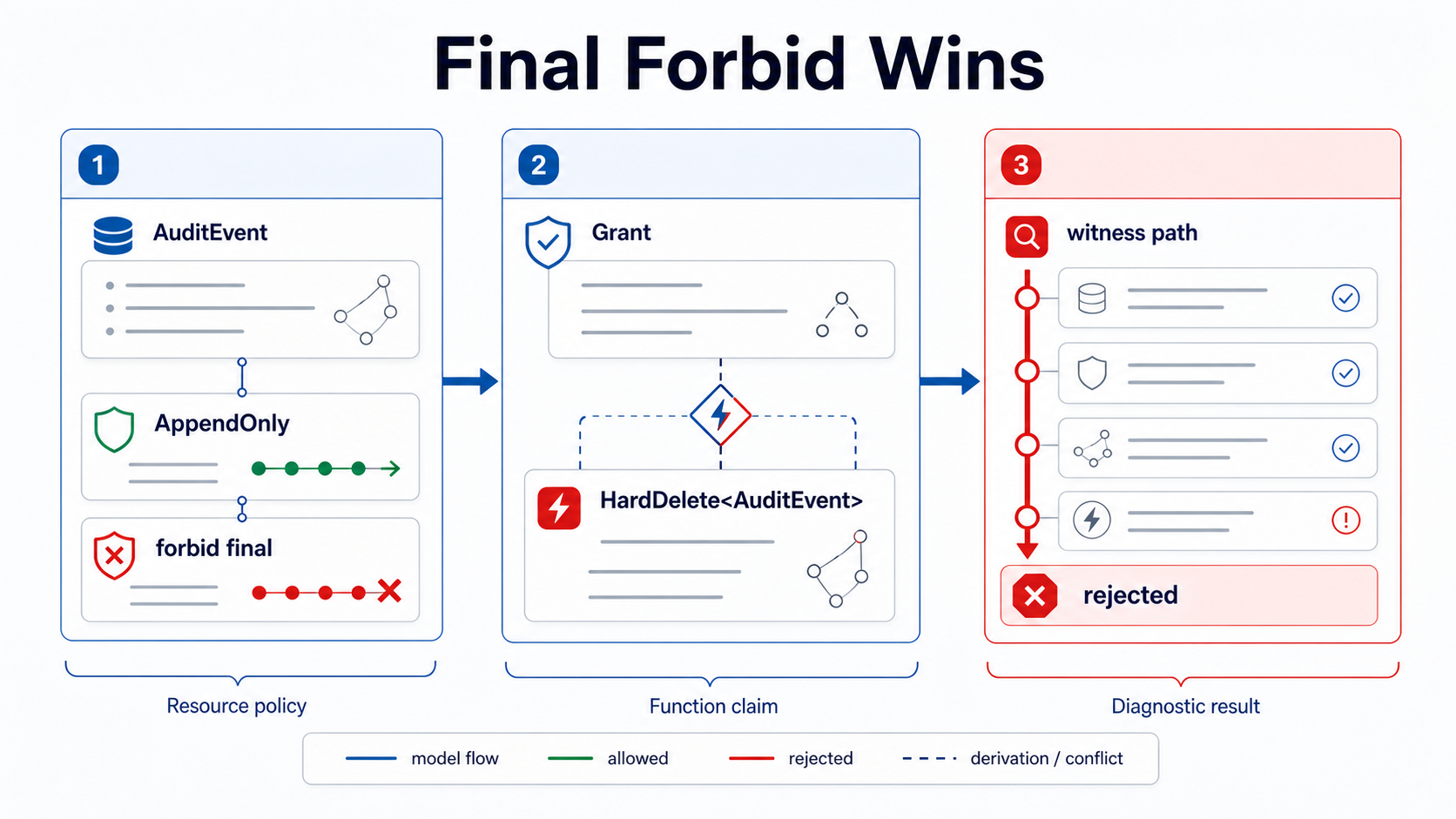

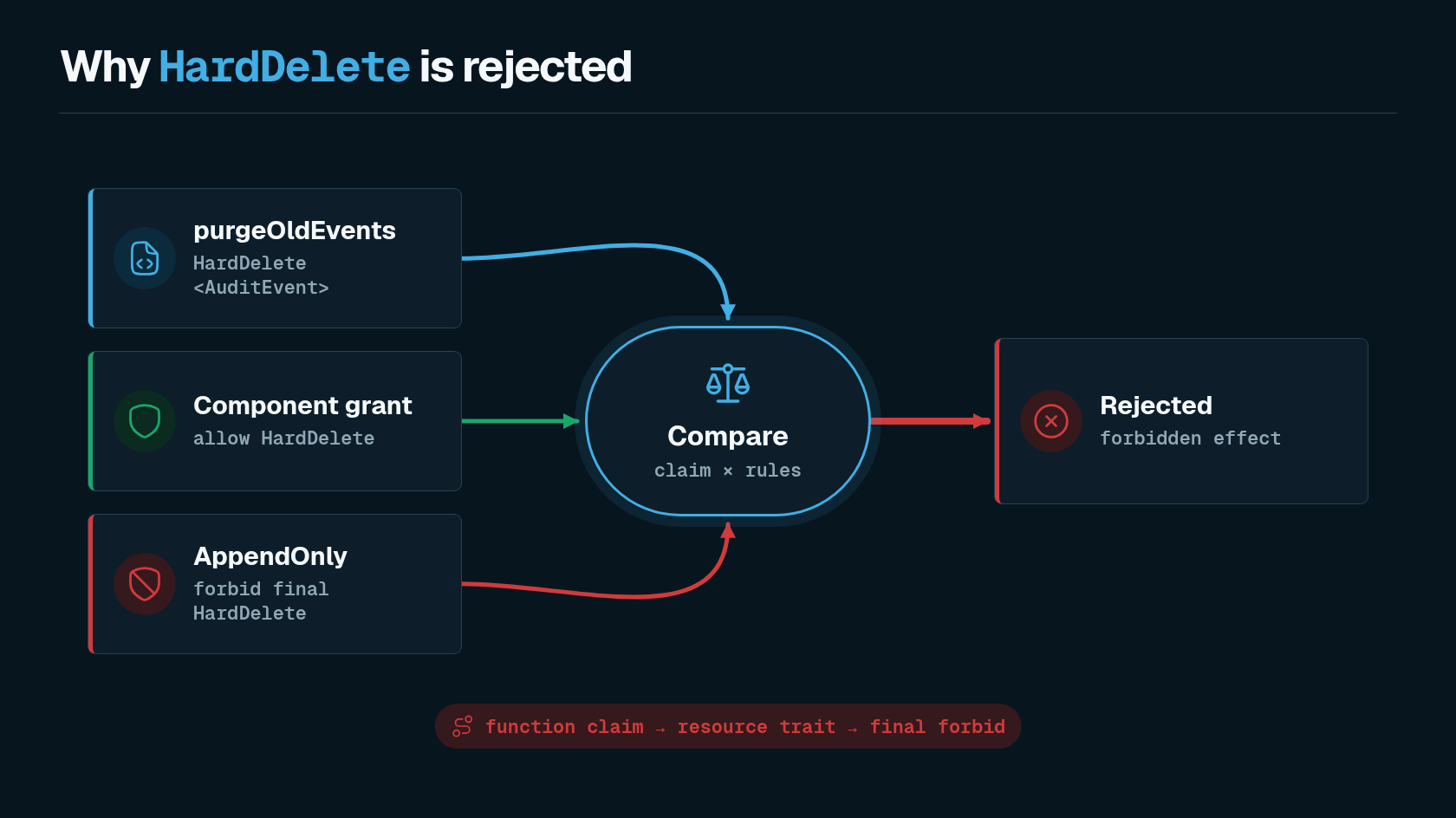

Append-only rejection diagram showing AuditEvent, AppendOnly, forbid final, a HardDelete claim, the witness path, and the rejected diagnostic.

When this applies

Section titled “When this applies”
  • You protect a resource that must not be hard-deleted, truncated, or dropped
  • You want CI to reject models that claim those effects even when a component grants them
  • You need a diagnostic that names the function, the resource trait, and the final forbid

Shape still does not prove that production code cannot delete the resource. It checks whether the declared model claims a forbidden effect.

Declare the invariant

Section titled “Declare the invariant”

Prelude AppendOnly finally forbids HardDelete, Truncate, and DropStorage on the resource. You can also declare an equivalent trait in the module (as the failure fixture does) so the constraint is visible in the same file:

module audit


trait AppendOnly<T: Resource> {
  allow Append<T>
  allow Read<T>
  forbid final DropStorage<T>
  forbid final HardDelete<T>
  forbid final Truncate<T>
}


resource AuditEvent : AppendOnly

final means a component grant cannot override the forbid. Memory, rationale, and reevaluation also cannot waive it.

Model the safe functions

Section titled “Model the safe functions”
module audit


trait AppendOnly<T: Resource> {
  allow Append<T>
  allow Read<T>
  forbid final DropStorage<T>
  forbid final HardDelete<T>
  forbid final Truncate<T>
}


resource AuditEvent : AppendOnly


component AuditStore {
  owns AuditEvent
  grants Append<AuditEvent>
  grants Read<AuditEvent>
  fn appendEvent
    source ts("src/audit/store.ts#appendEvent")
    effects complete {
      Append<AuditEvent>
        evidence ts("src/audit/store.ts#appendEvent")
    }
  fn listEvents
    source ts("src/audit/store.ts#listEvents")
    effects complete {
      Read<AuditEvent>
        evidence ts("src/audit/store.ts#listEvents")
    }
}

This model passes: the component grants the emitted effects, and the trait does not forbid them. The smaller pass fixture is fixtures/pass/append_only_append/audit.shape (prelude trait, no local trait body).

Add the unsafe function

Section titled “Add the unsafe function”
module audit


trait AppendOnly<T: Resource> {
  allow Append<T>
  allow Read<T>
  forbid final DropStorage<T>
  forbid final HardDelete<T>
  forbid final Truncate<T>
}


resource AuditEvent : AppendOnly


component AuditStore {
  owns AuditEvent
  grants Append<AuditEvent>
  grants HardDelete<AuditEvent>
  grants Read<AuditEvent>
  fn purgeOldEvents
    source ts("src/audit/purge.ts#purgeOldEvents")
    effects complete {
      HardDelete<AuditEvent>
        evidence ts("src/audit/purge.ts#purgeOldEvents")
    }
}

Save the unsafe module (for example as shape/audit.shape) and check that file:

Terminal window
shp check shape/audit.shape

In the Shape language repository you can also run the equivalent fail fixture:

Terminal window
shp check fixtures/fail/append_only_hard_delete/audit.shape

The checker reports a forbidden effect and a causal trail:

error: forbidden effect


AuditStore.purgeOldEvents emits HardDelete<AuditEvent>.
AuditEvent has trait AppendOnly.
AppendOnly forbids final HardDelete<AuditEvent>.
evidence: ts("src/audit/purge.ts#purgeOldEvents")

The grant for HardDelete<AuditEvent> is present and still insufficient. Final forbids win over grants.

The same final forbid still applies when design memory is attached to the function. See fixture fixtures/fail/memory_guard_does_not_override_final_forbid/.

Best practices

Section titled “Best practices”

Do

  • Put destructive effects in the model when source actually performs them, then fix architecture or remove the claim
  • Keep final forbids for invariants that must not be waived by component-local grants
  • Attach evidence on material effects so diagnostics and review point at the same source

Do not

  • Add a grant to “allow” a final-forbidden effect; the checker still rejects the emission
  • Use memory or reevaluation to silence a final forbid
  • Mark effects complete while omitting a known destructive path
