Shape

Evidence and Source Refs

Evidence makes Shape claims reviewable. An effect summary should point at the stable source symbol that supports the claim, or at the containing file when no stable symbol exists. The checker does not prove that the implementation is correct; evidence gives reviewers a concrete place to compare source with the declared model.

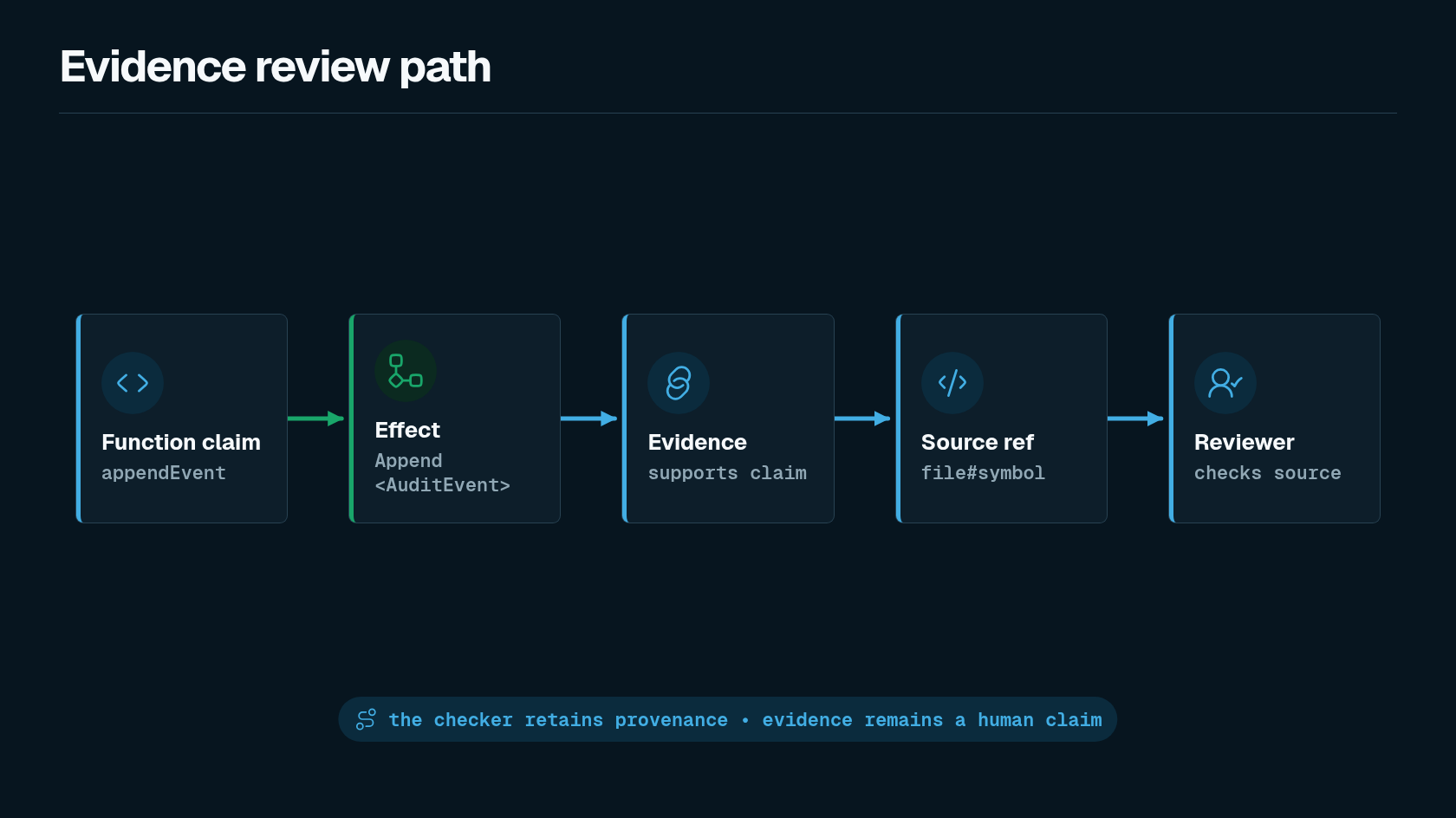

Evidence path diagram showing a claim, effect, evidence, source reference, reviewer check, and checker provenance.

module audit


resource AuditEvent : AppendOnly


component AuditStore {
  owns AuditEvent
  grants Append<AuditEvent>
  fn appendEvent
    source ts("src/audit/store.ts#appendEvent")
    effects complete {
      Append<AuditEvent>
        evidence ts("src/audit/store.ts#appendEvent")
    }
}

Source refs

Section titled “Source refs”

Source refs use a language tag and a string path:

source ts("src/audit/store.ts#appendEvent")
evidence ts("src/audit/store.ts#appendEvent")

The fragment above is intentionally incomplete (shape no-verify). In a full module, source sits on the function summary and evidence sits on individual effects.

The parser accepts the structure; reviewers interpret the path convention. Prefer #symbol anchors because they survive unrelated line movement. Use a file-only reference when the evidence has no stable named symbol. Avoid line and line-range suffixes in authored Shape.

Common language tags in fixtures and the repo model include ts(...), rust(...), and test(...). The tag is part of the ref; keep it consistent with the evidence kind.

Why evidence matters

Section titled “Why evidence matters”

Coverage and change review use source and evidence paths to decide whether a governed source change already has a current Shape update. A matching source or evidence path counts for coverage only when the declaring .shape file is also in the current changed-file list. See Implementations and Coverage.

Diagnostics can surface attached evidence on forbidden-effect failures so the causal trail ends at the claimed source span.

Analyzer relationship

Section titled “Analyzer relationship”

The optional source analyzer can flag obvious destructive operations such as DELETE, TRUNCATE, or DROP, then compare hints with declared effects. Those warnings are advisory. They do not authorize or reject the model.

The declared .shape model remains the source of truth. See Analyzer Hints.

Practice

Section titled “Practice”

Do:

  • Prefer #symbol anchors for named functions, methods, and types.
  • Put function-level source on the summary and per-effect evidence when effects map to different spans.
  • Use file-only refs only when no stable symbol exists.
  • Keep evidence narrow: one claim, one supporting location.

Do not:

  • Encode line numbers or ranges as the primary review handle.
  • Point evidence at unrelated files to satisfy coverage without a real model update.
  • Treat analyzer warnings as proof that effects are complete.
  • Omit evidence on production effect claims that reviewers cannot locate.
