Implementations and Coverage

Implementation blocks map source paths to component shapes. Coverage compares a changed-file list against those paths and requires a current Shape update or a current attestation when governed source changes. The checker still evaluates model coherence separately; coverage answers whether this change set documented architecture impact.

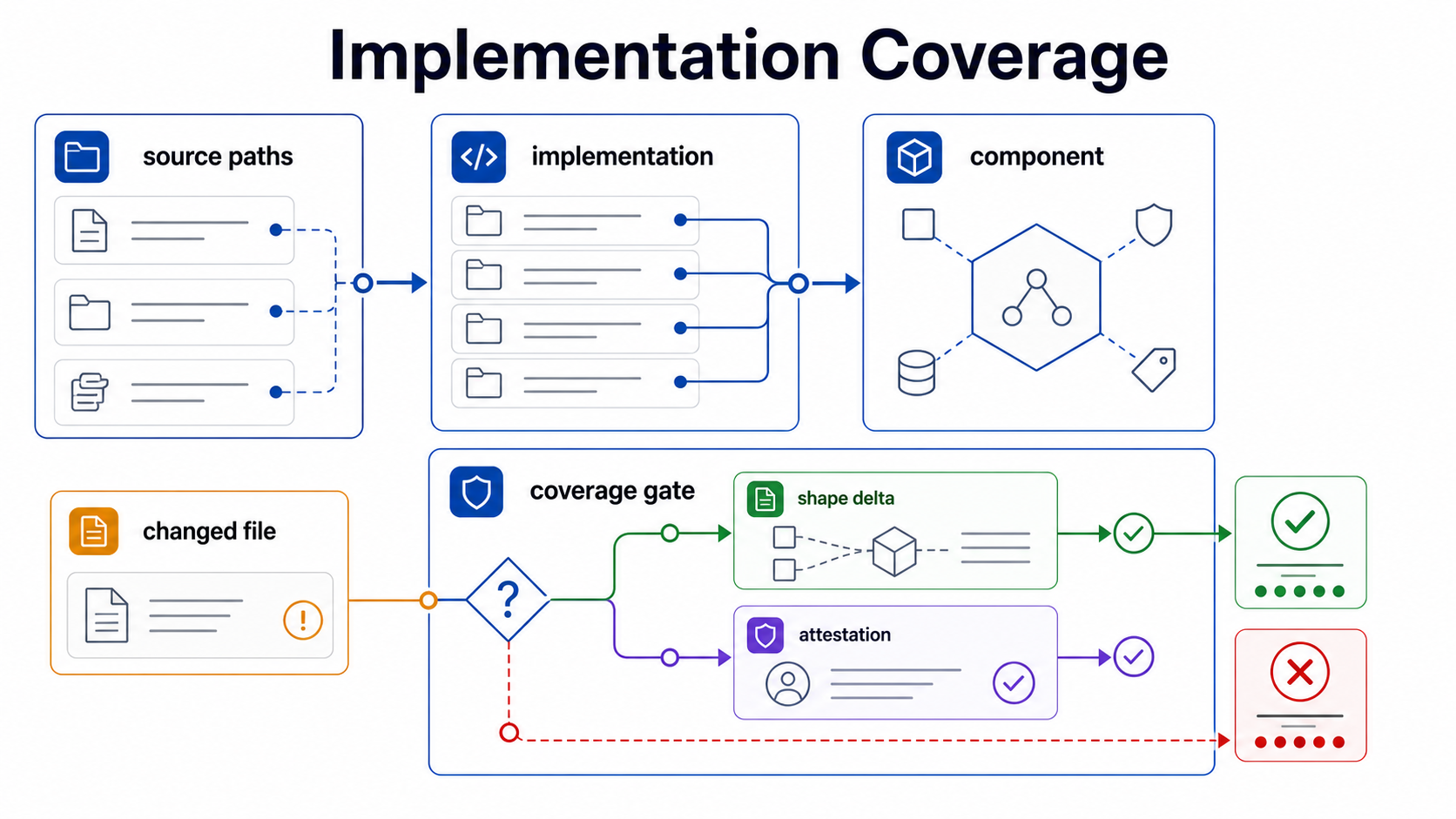

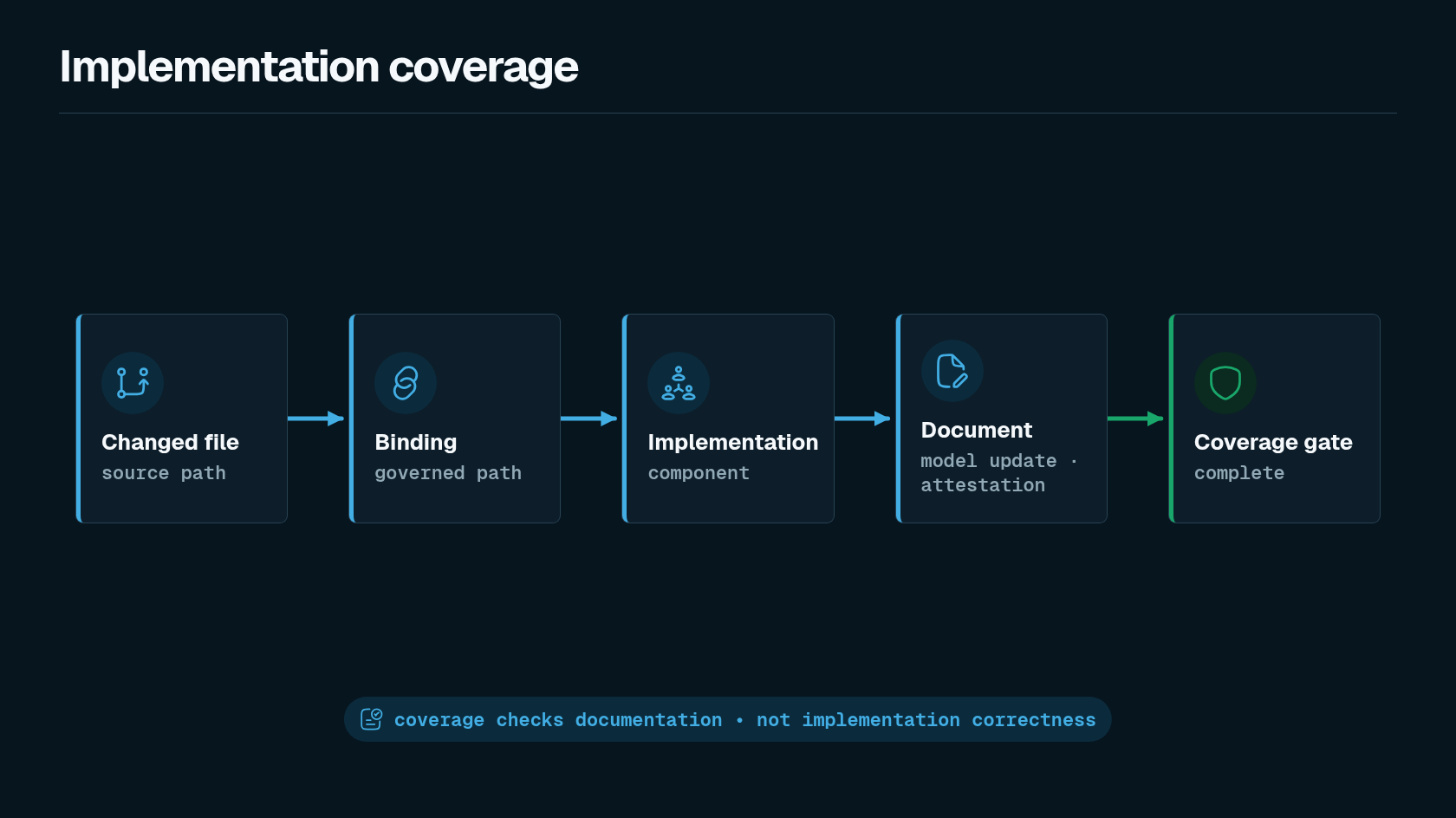

Implementation coverage diagram showing source paths mapped through implementation blocks to components, with changed files passing through a coverage gate via Shape update or attestation.

module audit


resource AuditEvent : AppendOnly


component AuditStore {
  owns AuditEvent
}


implementation AuditStoreImpl {
  paths {
    "src/audit/**/*.ts"
  }
  conforms_to AuditStore
  on_change require shape_update
}
FieldRole
pathsGlobs of governed source paths.
conforms_toComponent shape the paths are claimed to implement.
on_change require shape_updateCoverage obligation when a matching path changes.

How coverage counts a Shape update

Section titled “How coverage counts a Shape update”

Build a newline-delimited changed-file list for the current change set (CI and local scripts usually write changed.txt):

src/audit/purge.ts

Run coverage against your model files:

Terminal window
shp coverage --changed-files changed.txt shape/audit.shape

With no shape file arguments, coverage also scans shape/**/*.shape by default.

A matching source or evidence reference counts as a Shape update for a changed governed path only when the declaring .shape file is also in the current changed-file list. Alternatively, a current attest no_shape_change whose source matches the changed path can satisfy coverage when that attestation’s declaring .shape file is in the same list. Example attestation (in a .shape file that is itself listed in changed.txt):

module audit


resource AuditEvent : AppendOnly


component AuditStore {
  owns AuditEvent
}


implementation AuditStoreImpl {
  paths {
    "src/audit/**/*.ts"
  }
  conforms_to AuditStore
  on_change require shape_update
}


attest no_shape_change {
  source ts("src/audit/purge.ts")
  reason "Formatting-only change; no resource access or effect changed."
}

Missing model update failure

Section titled “Missing model update failure”

If a governed source path changes and the changed-file list does not include a current Shape update or current attestation, coverage fails with governed source changed without current Shape update.

In the Shape language repository, the same case is packaged as:

Terminal window
shp coverage --changed-files fixtures/changed/audit_purge.txt fixtures/fail/missing_shape_update/audit.shape

shp check --changed-files changed.txt runs semantic checks and, with the same list, coverage and bindings together.

Coverage versus bindings

Section titled “Coverage versus bindings”
CheckQuestion
Conformance (shp check)Is the declared model coherent?
Coverage (shp coverage or shp check --changed-files)Did this change set update the model when governed source changed?
Bindings (shp check --changed-files)Did a paired review surface (for example docs) change when a bound path changed?

shp coverage alone does not enforce bindings. A coherent model can still fail coverage on a PR that changes governed source without a current global model update.

Practice

Section titled “Practice”

Do:

  • Govern production architecture paths with implementation blocks and on_change require shape_update.
  • When changing governed source, update the owning .shape file with matching source / evidence, or add a narrow current attest no_shape_change.
  • Generate the changed-file list the same way CI does (for example bun run changed-files in this repo) before local coverage runs.
  • Keep globs tight enough that unrelated trees are not forced into architecture review.

Do not:

  • Rely on a previously committed attestation to cover a new change.
  • Point source / evidence at a governed path from an unchanged .shape file and expect coverage to pass.
  • Use coverage as a substitute for semantic checks or for reevaluation of guarded shapes.
  • Leave production paths ungoverned if CI is expected to catch missing model updates.
