Components, Ownership, and Grants

Components are the main boundary for authority and behavior claims: what a component owns, which effects its functions may emit, and which function summaries it provides. The checker evaluates those claims in the declared .shape model. It does not allocate runtime ownership or execute application code.

Components do not carry structural dependencies. Calls, provides, callbacks, and multi-party coordination live in top-level relation declarations. See Relations and Hypergraphs.

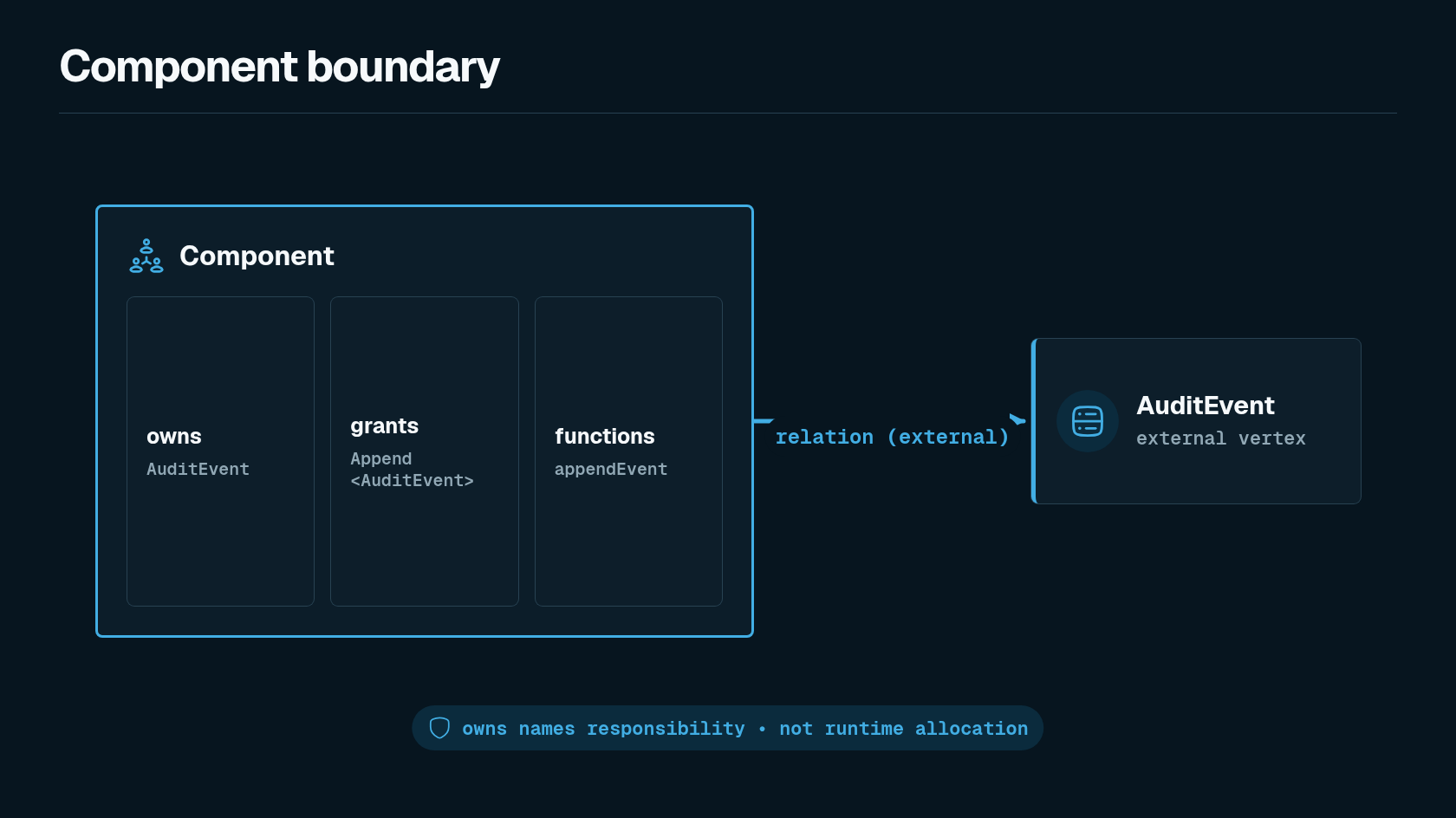

Component boundary diagram showing ownership, grants, and functions inside the component, with structural links shown as an external relation hyperedge, plus the note that ownership is not runtime allocation.

module audit

resource AuditEvent : AppendOnly

component AuditStore {
  owns AuditEvent
  grants Append<AuditEvent>
  grants Read<AuditEvent>
  fn appendEvent
    source ts("src/audit/store.ts#appendEvent")
    effects complete {
      Append<AuditEvent>
        evidence ts("src/audit/store.ts#appendEvent")
    }
}

Ownership

owns AuditEvent states that this component owns the resource in the architecture model. Ownership is a review claim used for structure and explanation, not a runtime allocation.

Grants

grants Append<AuditEvent> states that functions in this component may emit that effect. If a function emits an effect without a matching grant, the checker reports missing grant.

Grants do not override final forbids. This model still fails with forbidden effect:

module audit

trait AppendOnly<T: Resource> {
  forbid final HardDelete<T>
}

resource AuditEvent : AppendOnly

component AuditStore {
  owns AuditEvent
  grants HardDelete<AuditEvent>
  fn purgeOldEvents
    source ts("src/audit/purge.ts#purgeOldEvents")
    effects complete {
      HardDelete<AuditEvent>
        evidence ts("src/audit/purge.ts#purgeOldEvents")
    }
}

AuditEvent : AppendOnly derives a final forbid for HardDelete<AuditEvent>. The grant is not enough; design memory and reevaluation cannot waive the forbid either.

Function summaries

Each fn member declares the function’s optional shape traits, source, optional description, and either effects complete or effects unknown. Function-level requires is a capability term used with unsafe effects; it is unrelated to structural dependencies between components.

Shape traits on functions (for example RefactorSensitive or PreserveInline) create review obligations. See Refactor Constraints.

Structural dependencies

Structural links between components and resources live only in top-level relation declarations, never inside a component block:

module audit

resource AuditEvent

component Gateway {
}

component AuditStore {
}

relation GatewayCallsAudit {
  kind calls
  connects Gateway -> AuditStore
}

Practice

Do:

Put ownership, grants, and function effect summaries on the component that actually holds that authority in the architecture.
Grant only effects the component is allowed to emit under resource traits.
Keep call, callback, provide, and coordination edges in relation declarations.
Map source paths to components with implementation blocks when coverage should govern them. See Implementations and Coverage.

Do not:

Nest structural dependencies inside the component body.
Use a grant to paper over a final forbid.
Mark production boundaries as complete with effects unknown left unresolved in CI.
Treat owns as a memory-management or deployment claim.
