CI Workflow

Shape checks belong in review and CI. In application repos, install a pinned shp release and run the deterministic checker. This page separates consumer gates from optional LLM-assisted review and from the stricter workflow used inside the Shape repository itself.

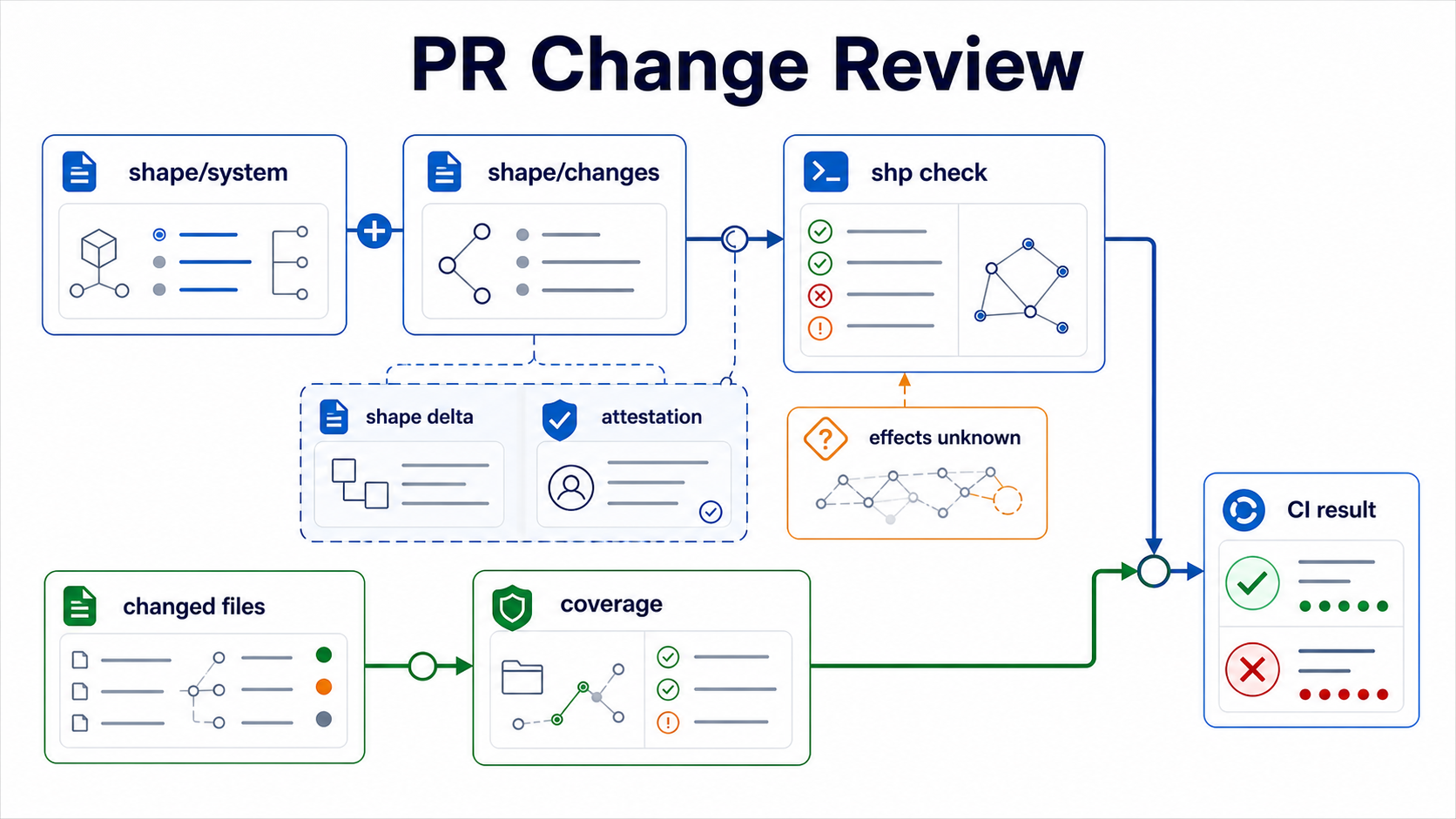

CI review workflow showing global Shape model files, changed files, coverage, shp check, and CI result.

Product boundary in CI

Section titled “Product boundary in CI”
  • shp check accepts or rejects the declared .shape model and review obligations.
  • Coverage and bindings enforce that the current change set updated the model (or attested) when governed or bound paths change.
  • Shape does not replace application tests, typechecking, or human code review of implementation quality.
  • Optional Claude or analyzer jobs are advisory or policy-gated; they do not redefine the deterministic checker.
Section titled “Recommended consumer workflow”
name: Shape


on:
  pull_request:
  push:
    branches:
      - main


jobs:
  shape:
    runs-on: ubuntu-latest


    steps:
      - uses: actions/checkout@v4
      - uses: timbrinded/shapelang@v0.8.0
      - run: shp check
      - run: shp fmt --check

Pin the setup action (or installer) to an explicit release such as v0.8.0. Do not use shp update as the CI install path; that command is for local developer binaries.

Coverage gate

Section titled “Coverage gate”

Coverage compares changed source paths with implementation blocks. A governed source change must be represented by a current Shape update, or by a narrow attestation in a .shape file changed in the same change set:

- name: Changed files
  run: git diff --name-only origin/main...HEAD > changed.txt


- name: Shape coverage
  run: shp coverage --changed-files changed.txt

Alternatively:

- run: shp check --changed-files changed.txt

shp check --changed-files runs semantic checks plus coverage and bindings. If a governed source path changes without a Shape update or current attestation, the check rejects the change. See Implementations and Coverage.

Direct binary install

Section titled “Direct binary install”

If you do not use the setup action:

- name: Install shp
  run: |
    curl --proto '=https' --tlsv1.2 -LsSf https://github.com/timbrinded/shapelang/releases/download/v0.8.0/install.sh | sh
    echo "$HOME/.local/bin" >> "$GITHUB_PATH"

Keep CI installs pinned to an explicit release.

Optional machine-readable model artifact

Section titled “Optional machine-readable model artifact”

After the strict check passes, a workflow can export the accepted authored model for a visualizer or another local reporting tool:

- name: Check Shape
  run: shp check


- name: Export Shape model
  run: shp inspect --json > shape-model.json

shp inspect --json uses the same recursive shape/**/*.shape discovery and canonical lowering as the CLI’s model queries. Its schema is versioned, its IDs are module-qualified, and it has no current-time field. Identical inputs and the same pinned shp version therefore produce identical bytes. The export is not a CI gate by itself: keep shp check before it, and make downstream consumers reject unsupported inspection schema versions.

Optional Claude contract review

Section titled “Optional Claude contract review”

Some teams run Claude Code as a separate PR job to review whether committed Shape claims faithfully describe changed behavior. That job is not a substitute for shp check or shp coverage.

Run the review through the official anthropics/claude-code-action. It installs Claude Code, runs the prompt headless, and when --json-schema is passed in claude_args it validates the model’s final answer and exposes it as a structured_output step output. The action’s credential check accepts ANTHROPIC_API_KEY or a Claude Code OAuth token. Proxy-backed repositories can authenticate with ANTHROPIC_AUTH_TOKEN and ANTHROPIC_BASE_URL instead: the action forwards its environment to Claude Code, so set both on the job env and pass the token through the anthropic_api_key input to satisfy the credential check. Detect the credential first so forked pull requests skip the Claude-only work instead of failing on an unavailable secret:

shape-claude-review:
  if: github.event_name == 'pull_request'
  runs-on: ubuntu-latest
  steps:
    - name: Detect Claude credentials
      id: claude-token
      env:
        ANTHROPIC_API_KEY: ${{ secrets.ANTHROPIC_API_KEY }}
        ANTHROPIC_AUTH_TOKEN: ${{ secrets.ANTHROPIC_AUTH_TOKEN }}
      run: |
        if [ -n "${ANTHROPIC_API_KEY:-}" ] || [ -n "${ANTHROPIC_AUTH_TOKEN:-}" ]; then
          echo "available=true" >> "$GITHUB_OUTPUT"
        else
          echo "available=false" >> "$GITHUB_OUTPUT"
          echo "Skipping Claude Shape contract review because no Anthropic API credential is available."
        fi
    - uses: actions/checkout@v4
      if: steps.claude-token.outputs.available == 'true'
      with:
        fetch-depth: 0
    - run: git diff --name-only "origin/${{ github.base_ref }}...HEAD" > changed.txt
      if: steps.claude-token.outputs.available == 'true'
    - name: Run Claude Shape contract review
      id: claude
      if: steps.claude-token.outputs.available == 'true'
      uses: anthropics/claude-code-action@v1
      env:
        ANTHROPIC_AUTH_TOKEN: ${{ secrets.ANTHROPIC_AUTH_TOKEN }}
        ANTHROPIC_BASE_URL: ${{ secrets.ANTHROPIC_BASE_URL }}
      with:
        anthropic_api_key: ${{ secrets.ANTHROPIC_AUTH_TOKEN || secrets.ANTHROPIC_API_KEY }}
        github_token: ${{ github.token }}
        prompt: |
          Review changed.txt against the durable Shape model in shape/**/*.shape.
          For changed source behavior that affects the architecture contract,
          require a faithful current Shape update or a narrow current attestation.
          Return status "pass" only when the model faithfully covers the change.
        claude_args: |
          --model claude-sonnet-4-6
          --max-turns 100
          --disallowedTools Write,Edit
          --json-schema '{"type":"object","additionalProperties":false,"required":["status","summary","findings"],"properties":{"status":{"type":"string","enum":["pass","drift","error"]},"summary":{"type":"string"},"findings":{"type":"array","items":{"type":"string"}}}}'
    - name: Gate on the review result
      if: steps.claude-token.outputs.available == 'true'
      env:
        REVIEW_RESULT: ${{ steps.claude.outputs.structured_output }}
      run: |
        node <<'NODE'
        const result = JSON.parse(process.env.REVIEW_RESULT || "{}");
        if (result.status !== "pass" || (result.findings ?? []).length > 0) {
          console.error(JSON.stringify(result, null, 2));
          process.exit(1);
        }
        console.log(result.summary);
        NODE

Use a short prompt that makes shape/ the authority:

# Shape contract review


Review `changed.txt` against the durable Shape model in `shape/**/*.shape`.
For changed source behavior that affects the architecture contract, require a
faithful current Shape update or a narrow current attestation.


Run `shp check --changed-files changed.txt`, `shp obligations`, and
`shp memory`. Use `shp explain` when a symbol needs context and
`shp analyze` only as advisory input.


Return structured output with `status: "pass" | "drift" | "error"` and terse
evidence-backed findings.

In Bun workspaces that invoke the CLI via package scripts, substitute bun shp for shp only when that is how the repo packages the binary.

Shape repository workflow

Section titled “Shape repository workflow”

The Shape repository dogfoods this workflow more strictly than a normal consumer repo. CI generates changed.txt, then runs formatting, semantic checks, coverage, obligations, and memory output:

Terminal window
bun run changed-files
bun run shape:ci

shape:ci runs bun run ast:check and then bun shp check --changed-files changed.txt, so generated AST context, implementation coverage, and bindings are checked together. Bindings are used for documentation coupling: if Shape-affecting code or model files change, the associated docs must change too, unless the current change set includes a narrow current docs_not_needed attestation.

On pull requests from repository branches, CI also upserts a single Shape CI summary comment. The comment reports the Shape, Shape Claude Review, Shape Contract Guard, and Shape Index Coverage job results for the latest commit and links back to the workflow run.

Skill-driven PR jobs

Section titled “Skill-driven PR jobs”

The Shape repository runs three Claude-powered PR jobs, all driven by one script: .github/scripts/run-claude-skill.mjs, invoked from the shared .github/actions/claude-skill-review composite action. The script runs twice per job: a --prefilter pass that either finishes deterministically or emits the prompt and claude_args (Sonnet by default), the official anthropics/claude-code-action runs the model call with --json-schema structured output, and a gate pass validates the result against the strict JSON schema under .github/shape-contract/schemas/, renders a job summary, and gates on a per-skill policy. When a proxy gateway drops structured output, the gate recovers the JSON result from the action’s execution log instead. Each job detects Anthropic credentials first and skips cleanly when none are available. Two of the jobs start with a deterministic prefilter, so most pull requests never invoke the model.

Shape Claude Review (shape-claude-review) checks source-to-model drift using the policy in .github/prompts/shape-contract-review.md; any finding or non-pass status fails the job.

Shape Contract Guard (shape-guard) applies plugins/shapelang/skills/shape-contract-guard/SKILL.md (policy in .github/prompts/shape-guard.md) to the authored .shape diff against the PR base. It normalizes before/after facts, classifies semantic impact separately from supporting decision evidence, and checks removed final forbids, weakened traits, widened grants or effects, relation or coverage weakening, and weak attestations. If no authored .shape file changed, the prefilter emits a pass result without calling Claude. Findings remain advisory interpretations; the host fails only for a high-impact suspicious finding or a review error. Specifically supported high-impact changes remain visible for human review without being silently reclassified as low impact.

Shape Index Coverage (shape-index) applies plugins/shapelang/skills/shape-index/SKILL.md (policy in .github/prompts/shape-index.md) as an audit: the prefilter computes which changed source files no authored shape/*.shape source/evidence ref or implementation paths glob covers, and only asks Claude to judge that uncovered remainder for architecture-significant subsystems lacking Layer-2 coverage. Gaps are reported in the job summary and PR comment but stay non-blocking unless the repository sets the SHAPE_INDEX_STRICT Actions variable to true.

Shape repo contributor checks

Section titled “Shape repo contributor checks”

The Shape repository itself also runs Bun workspace tests, typechecking, docs verification, and release smoke tests. Those are contributor checks, not required for application repos that only consume shp.

See Local Development for the contributor commands.

Official releases add a separate blocking skills candidate workflow and manual environment approval before tagging. See Releasing Shape.

Practice

Section titled “Practice”

Do

  • Pin shp (or the setup action) to a release tag in every environment
  • Fail CI on strict shp check without --allow-unknown-effects
  • Produce changed.txt the same way locally and in CI when testing coverage
  • Keep optional LLM review jobs credential-gated and secondary to the deterministic checker

Do not

  • Soften final forbids or drop coverage only to green CI
  • Treat Claude findings as a replacement for model updates when the contract changed
  • Require Shape-repo-only Bun workflows in pure consumer application repos
